UNISTAR Auto-2-FF-L

• Fully automatic 2-strip Film Assisted Molding system
• Designed for advanced mems, sensor, power, qfn and bga packages
• System works with lead frames, substrates and ceramic carriers as well as individual modules
• Standard equipped with Boschman’s unique and patented double Film Assisted Molding technologies
• Clamping Mechanism: A highly-accurate continuously-variable, automatic clamping force mechanism from 20 to 100 tons per chase is used to enable control of mold clamping and film compression
• Transfer and Cure Process Control: Servo controlled for maximum accuracy and a long service life
• Data collection and process monitoring

UNISTAR Auto-4-FF-XL

• Fully automatic 4-strip Film Assisted Molding system
• Designed for advanced mems, sensor, power, qfn and bga packages
• System works with lead frames, substrates and ceramic carriers as well as individual modules up to a size of 100 x 300 mm
• Standard equipped with Boschman’s unique and patented double Film Assisted Molding technologies
• Clamping Mechanism: A highly-accurate continuously-variable, automatic clamping force mechanism from 20 to 100 tons per chase is used to enable control of mold clamping and film compression
• Transfer and Cure Process Control: Servo controlled for maximum accuracy and a long service life
• Data collection and process monitoring

UNISTAR Innovate-2-FF-L

• The most universal semi-automatic molding system designed for practically any kind of package
• Works with lead frames, substrates, ceramic carriers and individual modules
• Can handle standard mini-pellets, powder and liquid encapsulation materials
• Comes standard with most Boschman unique and extensive Film Assisted Molding technologies
• Suitable for package technology research, package development, process optimization, qualification runs and small to medium size production volumes
• This system can handle test molds, 1-strip molds and 2-strip molds
• High-precision press with self-correcting clamping system
• Unique automatic substrate thickness compensation clamping system
• Advanced transfer and cure process closed loop control
• All Film Assisted Molding technologies can be processed with short conversion times
• Patented Dynamic Insert Control Technology optional
• Energy-efficient system design, small footprint and easy access

UNISTAR Innovate-2-NF-L

• The most universal semi-automatic molding system designed for conventional packages
• Suitable for small to medium sized production volumes
• Noted for very short conversion times when moving from one package to another and low-cost tooling
• This system can handle test molds, 1-strip molds and 2-strip molds
• Ideal for package technology research, package development, process optimization and qualification runs
• Lead frames, substrates ceramic carriers, as well as individual modules can be processed
• Ergonomic design makes the system easy to operate
• CE-compliant
• High-precision press with self-correcting clamping system
• Unique automatic substrate thickness compensation clamping system
• Advanced transfer and cure process closed loop control
• Energy-efficient system design, small footprint and easy access
• Vacuum mold option available
• Unique Automatic Substrate Thickness Compensation Clamping System optional

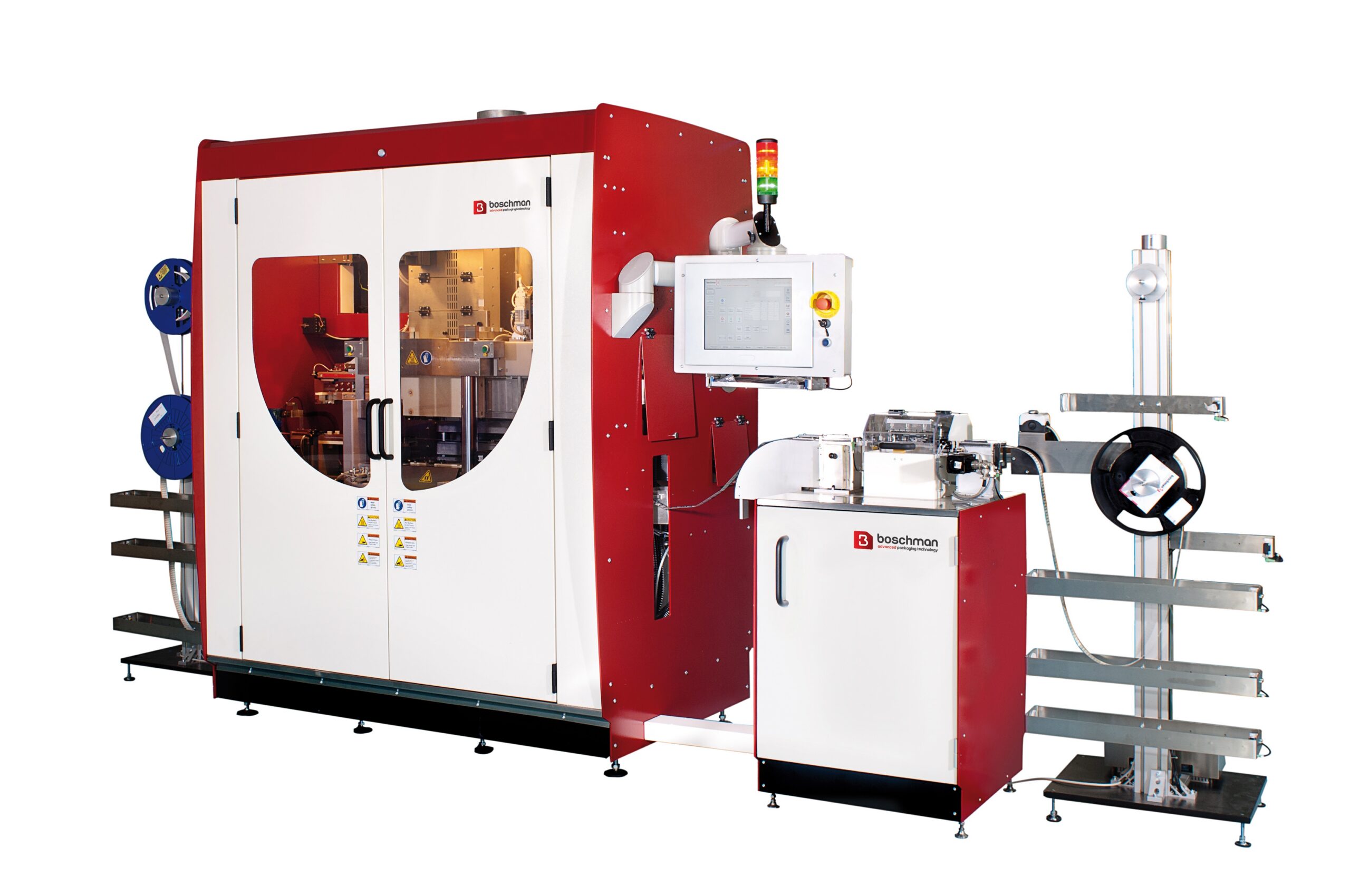

Reelstar Auto-1-NF-S & Auto-2-NF-S

• Automatic (single reel or dual reel) reel-to-reel multi-plunger molding system
• Designed for contactless and contact smartcard modules, discrete small signal, power packages and ultra-thin tape-based packages
• Offers high throughput, competitive pricing, low compound usage and high precision mold tooling
• Offers a mold length of 350 mm and very short machine time to achieve maximum productivity
• Very precise pitch control for maximum accuracy in package offset and cavity depth precision
• Ultra-thin endless strip handling < 60 Micron
• Separate de-gate station
• High-precision press with self-correcting clamping system
• Advanced transfer and cure process closed loop control
• Easy and fast conversion between different packages
• Three mold cleaning methods
• CE Certified
